Week 5, Monday: Graphics, Using Objects

review

• Quiz 2 is this Friday
• Lab 4 is due this Saturday
• review of `mathquiz.py` program from last time
• write each function and immediately test it!
• don't write lots of functions and then try to test them all at once!

graphics & objects

Objects are both data and functions (called methods, if they are part of an object), together.

In python, both strings and lists are objects! Some useful string methods include `upper()`, `lower()`, and `find()`. Run `help(str)` in the interactive python shell to see all string methods. Some useful list methods include: `append()`, `sort()`, and `count()`. Here are examples of using all of these:

``````>>> S = "we love CS!!"
>>> S.upper()
'WE LOVE CS!!'
>>> S.lower()
'we love cs!!'
>>> S.find("v")
5
>>> print(S)
we love CS!!

>>> L = [5,67,13,20]
>>> L.append(14)
>>> print(L)
[5, 67, 13, 20, 14]
>>> L.sort()
>>> print(L)
[5, 13, 14, 20, 67]
>>> L.count(20)
1
``````

Notice how the str methods don't change the string `S`. Also notice the syntax of calling a method on an object: `object.method()`

So these `list` and `str` methods are very useful, but writing your programs using objects, and creating our own objects (week 11 in this class) is also very useful.

Here's an example from a previous week:

``````def main():

# parallel lists
players = ["Vladimir Radmanovic","Lou Williams","Lebron James", "Kevin Durant","Kobe Bryant"]
ppg     = [0, 11.5, 30.3, 28.5, 30.0]  # points-per-game
games   = [2, 13, 23, 20, 12]            # games played

for i in range(len(players)):
print("%d: %20s %4.1f %2d" % (i, players[i], ppg[i], games[i]))
``````

This program stores data in parallel lists. It works, but I think you can see it is difficult to know which data corresponds to which player (especially if the program had data for all 300+ NBA players in it). Wouldn't it be better/simpler/more intuitive to store data for each player in an `NBAPlayer` object, along with methods that we might use on such objects? Later in the semester we will create our own objects. Here is an example of using an `NBAPlayer` object:

``````>>> from nbaplayer import *
>>> jeff = NBAPlayer("Jeff Knerr", 90, 3)
>>> print(jeff)
Jeff Knerr is averaging 30.0 points/game in 3 games
>>> jeff.addGame(35)
>>> print(jeff)
Jeff Knerr is averaging 31.2 points/game in 4 games
>>> jeff.getPoints()
125
>>> jeff.getGames()
4
>>> jeff.PPG()
31.25
``````

In the above example, I create a new player object by calling the constructor (`NBAPlayer(...)`), giving it arguments for full name, total points scored (90), and total number of games played (3). I can then print the object, or call some of its methods: `addGame(pts_scored)`, `getPoints()`, etc. Notice that calling the `addGame()` method updates the data stored in the object (total points was 90 in 3 games, now is 125 in 4 games).

This week we will learn to use objects and methods, by utilizing the Zelle Graphics Library. Learning objects using graphics is fun and hopefully easier, since you can see the actual object (e.g., a Circle drawn on the screen). Your jobs this week are to get used to the `object.method()` syntax (remember, methods are just functions, but they are part of the actual object), learn the graphics library (all its objects and their methods), and draw some pretty pictures. :)

interactive examples

Take a look at the following interactive examples and see what they draw. We have a nice Using the Zelle Graphics Library page that shows most of the objects, their methods, and examples of how to call them.

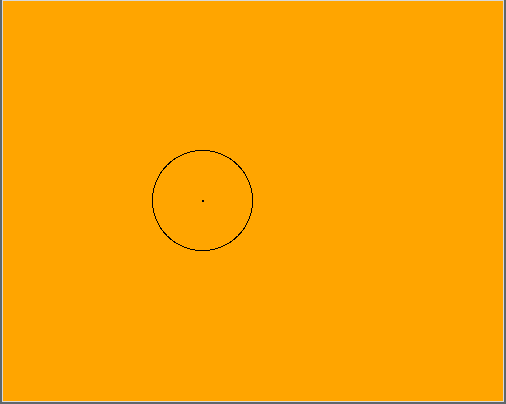

``````>>> from graphics import *
>>> gw = GraphWin("title", 500, 400)
>>> gw.setBackground("orange")
>>> p = Point(200,200)
>>> p.draw(gw)
>>> c = Circle(p, 50)
>>> c.draw(gw)
``````

In the above example we:

• import the graphics library
• create a `GraphWin` object
• call the `setBackground()` method
• create a `Point` object
• call the `draw` method
• create a `Circle` object
• draw the circle object

Refer back to the Using the Zelle Graphics Library if you do not understand the code above that creates 3 objects and calls various methods.

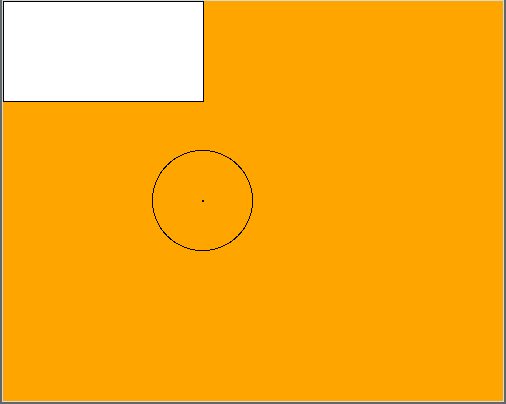

``````>>> p1 = Point(1,1)
>>> p2 = Point(201, 101)
>>> r = Rectangle(p1,p2)
>>> r.draw(gw)
>>> r.setFill("white")
``````

Notice that `Point(1,1)` is near the top left of the graphics window!

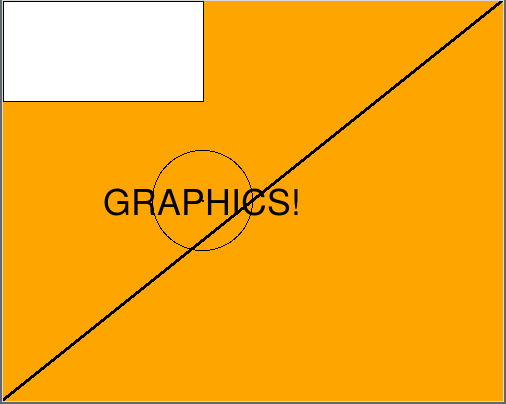

``````>>> LL = Point(0,400)
>>> UR = Point(500,0)
>>> line = Line(LL,UR)
>>> line.draw(gw)
>>> line.setWidth(3)
>>> t = Text(p, "GRAPHICS!")
>>> t.setSize(24)
>>> t.draw(gw)
``````

And `LL` is the lower left of the graphics window. In graphics, the top left is usually the origin (point 0,0), with the x coordinate increasing to the right, and the y coordinate increasing to the bottom of the screen.

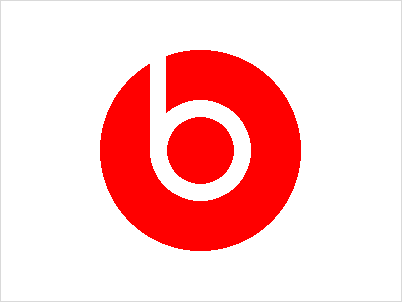

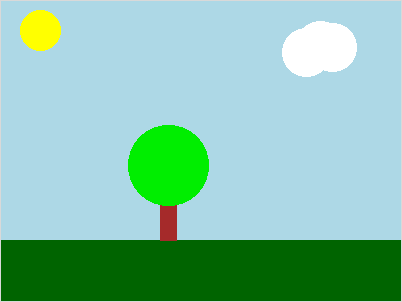

See if you can use the Zelle graphics library to draw one of these pictures:
